Inside the TITAN Aluminium Megashore System
Designed for the loads the Gulf demands

7. July 2026

Each region has unique engineering requirements. In the Gulf, rapid construction, tall structures, and extreme falsework heights place greater demands on shoring systems than in other markets.

The TITAN Aluminium Megashore System was developed to meet these demands. Lightweight, modular, and engineered for high loads, it is widely used on Gulf projects. Understanding its design reveals why it is so effective.

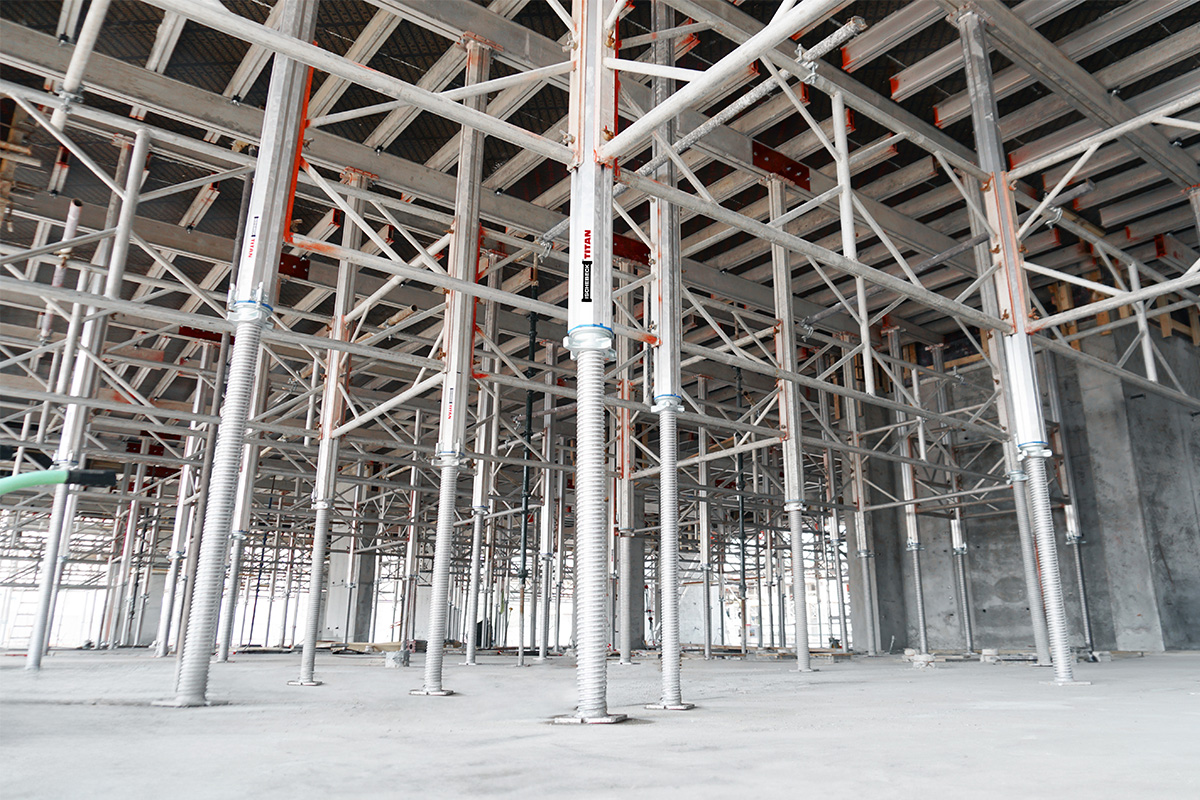

The Core Element: The Adjustable Aluminium TITAN Leg

The TITAN adjustable aluminium leg is central to the system. Available in four lengths for working ranges from 1.70 to 5.50 meters, it is made from high-quality aluminium, providing a high load capacity relative to its weight. Leg loads up to 128 kN allow slender support towers to carry substantial slab loads without the bulk of traditional steel falsework.

The leg is governed by DIN EN 16031 and supported by National Technical Approval Z-8.22-874 for the frame-to-leg connection. Verified typical calculations to DIN EN 12812 cover heights up to 24.60 meters, which is rare in this system category.

From Single Leg to Support Tower

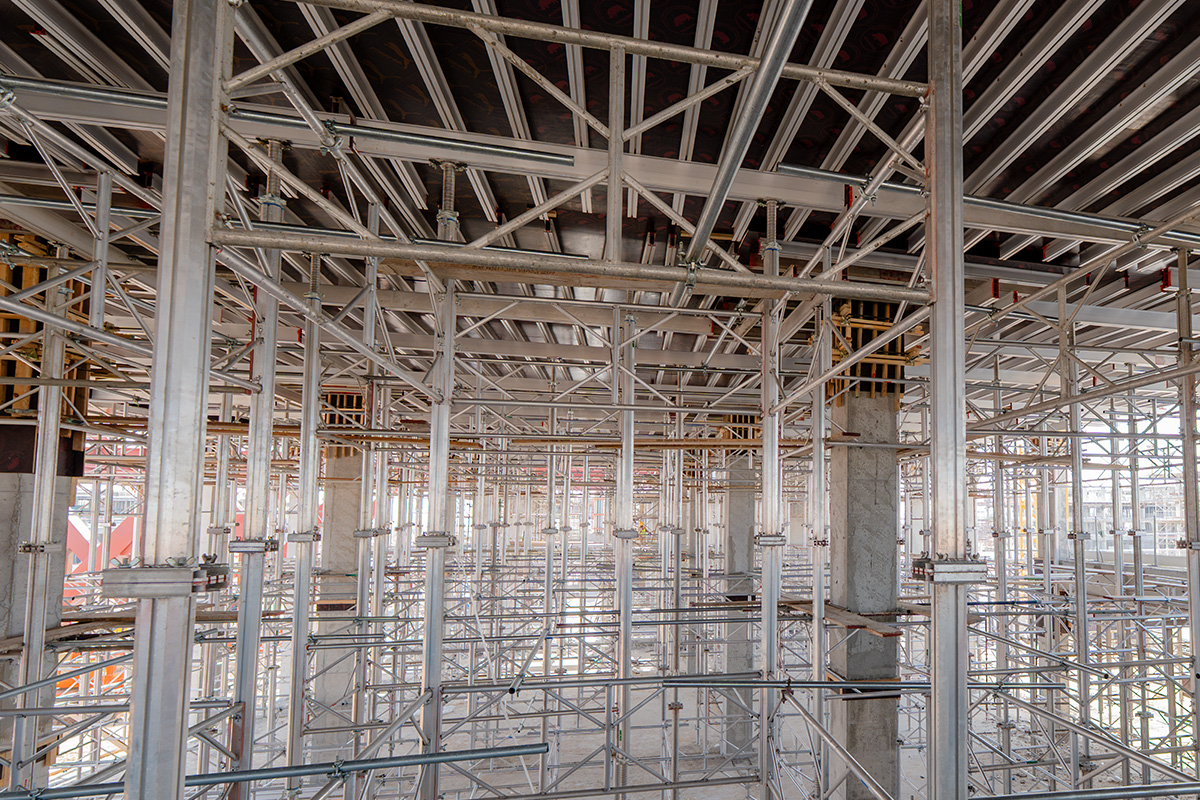

A single adjustable leg is seldom used alone on Gulf projects. The system is designed for scalability. Four legs and aluminium ledger frames quickly assemble into a support tower, and multiple towers can be connected with additional frames to create a complete temporary support structure.

Ledger frames come in seven sizes, from 600 mm to 3,000 mm, with a 48 mm tube diameter compatible with standard scaffold couplers. Assembly is performed horizontally on the ground for safety and speed, with typical rates of 0.22 man-hours per vertical meter.

Built for the Loads That Gulf Projects Actually Carry

Gulf projects often push falsework to its limits, such as cantilevering slabs 22.5 meters above ground, supporting mosque domes at 35 meters, and constructing luxury residences with 11-meter beam spans, 1.10-meter deep downstand beams, and falsework heights near 10 meters. The TITAN Aluminium Megashore System has been used in all these scenarios.

The system succeeds for two main reasons. First, its high load capacity is proven in real assemblies, with leg loads of 128 kN achievable. Second, its modular design adapts to complex geometries without requiring a full redesign. Accessories such as connecting brackets, rocking head plates for angled beams up to 78°, and friction clamps for cantilever beams allow engineers to address challenging conditions.

The Aluminium Advantage

The advantage of aluminium falsework in the Gulf is operational. Aluminium is lightweight, robust, weather-resistant, and easy to handle in high temperatures. Components can be moved by hand or with light lifting equipment, which is important where crane time is limited. TITAN aluminium formwork beams, available as TITAN 225 and TITAN T150 in various lengths, offer these benefits at both primary and secondary beam levels.

For mobile formwork, the system supports complete tunnel forms that can be lowered, moved, and repositioned in about two hours by a six-person crew. For table-form applications, fully assembled forms covering over 100 square meters can be lifted to the next storey in a single crane operation.

The Bigger Point

The TITAN Aluminium Megashore System is effective in the Gulf because it was specifically designed for the region’s requirements. It handles high loads, complex geometries, tight schedules, and extreme heat. Its load tables, approvals, and accessories demonstrate its suitability for demanding engineering applications.

For falsework, table forms, mobile formwork, and other temporary support structures, the system offers engineers scalable solutions to meet project demands.
